Elkay EWMA4820C User Manual download pdf

(25mm)

7/16" (11mm) x

3/4" (19mm)

SLOT

STAINLESS STEEL BRACKETS

6-3/8"

(162mm)

5-3/8"

(137mm)

1-1/2"

(38mm) O.D.

8-7/8"

(225mm)

3-1/2" (89mm) DIA.

FOR LK18B DRAIN

1/4" R

(6mm)

1/4" R

(6mm)

9-1/8"

(232mm)

36" (914mm)

SUGGESTED

FLOOR TO

RIM HEIGHT

SIDE

TOP

13-3/4"

(349mm)

7-3/4"

(197mm)

4-1/4"

(108mm)

14"

(356mm)

1-1/2"

(38mm)

2-3/4"

(70mm)

(25mm)

G GGH H

8-11/16"

(221mm)

7-11/16"

(195mm)

1/2"

(13mm)

7/16" (11mm)

DIA. HOLE

WALL HANGER

1/4" (6mm) x 1" (25mm)

LONG SLOT (6 PLACES)

WALL HANGER

7-3/4"

(197mm)

SEE OTHER SIDE FOR FAUCET

HOLE DRILLING CONFIGURATIONS

FRONT

43"

(1092mm)

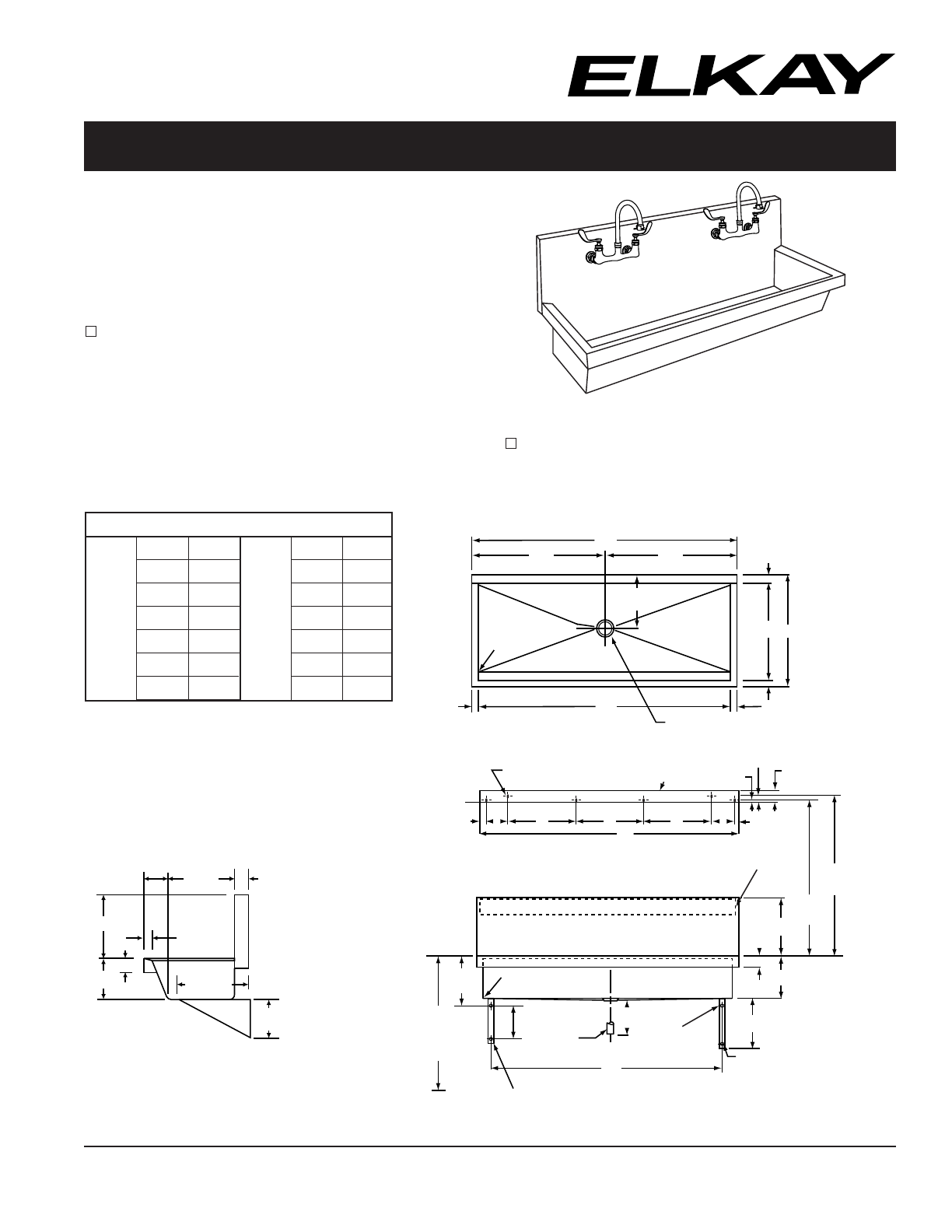

Two Station Wall Mounted

Wash Sink

Models EWMA4820C and EWMA4820

SPECIFICATIONS

GENERAL

#14 gauge, type 304 (18-8), stainless steel multiple station

wash sink with 1/4" (6mm) radius coved corners. 1-1/2"

(38mm) wide inward sloping top channel rims, with 2" (51mm)

flat apron. Full length 10" (254mm) high backsplash. Exposed

surfaces are hand blended to a uniform lustrous satin finish.

Furnished with wall hangers and stainless steel support

brackets.

(CHECK MODEL SPECIFIED)

EWMA4820C

FURNISHED COMPLETE WITH:

SUPPLY: LK393ABH6. (Two) chrome plated mixing faucet with

BH6A 6" (152mm) wrist blade handles, swing 10-1/4"

(260mm) high gooseneck spout, AE19A vandal-

resistant anti-hose aerator.

DRAIN: LK18B. Stainless steel perforated strainer grid.

1-1/2" (38mm) O.D. x 4" (102mm) stainless steel

tailpiece.

Elkay

2222 Camden Court

Oak Brook, IL 60523

Printed in U.S.A.

(Rev. 9/02) 3-14G

www.elkay.com

Model EWMA4820C (Two station)

In keeping with our policy of continuing product improvement, Elkay reserves the right to change

product specifications without notice.

DIMENSIONS

FOLLOWING MODEL DOES NOT INCLUDE

SUPPLY AND DRAIN:

EWMA4820

SPECIFY FAUCET DRILLINGS AND LOCATION.

(See other side for standard faucet hole drilling configurations.)

Model Number EWMA4820

DIMS. in. mm DIMS. in.

A 48 1219 G 10 254

B 20 508 H 4 102

C 45 1143 I 2 51

D 16

/2 419 J 1

/2 38

E 24 610 K 8 203

F 40 1016

1 2

SPECIFICATIONS 1
