INSTALLATION

ATTENTION INSTALLER:

1. Position template on countertop. Locate the

template front to rear,so that sink will not inter-

fere with the cabinet.

2. Trace a line around the template. Cut along the

inside of this line to provide opening.

3. Locate and drill the mounting holes (following

the countertop manufacturer’s instructions) as

shown below.Holes should allow even spacing

of mounting brackets around the sink.Type of

fasteners to be as recommended by countertop

supplier.

4. Fasten mounting brackets (optional accessory-

LKUCLIP8) to countertop loosely.

5. Using a good quality silicone caulk, apply a bead

evenly all around the top of the sink flanges.

6. Position and align sink over the countertop

opening. Press silicone onto countertop.

7. Tighten fasteners until mounting brackets are

snug against sink.

8. Check alignment of sink to countertop opening.

9. Tighten down fasteners evenly. Be careful not to

overtighten. Remove excess silicone.

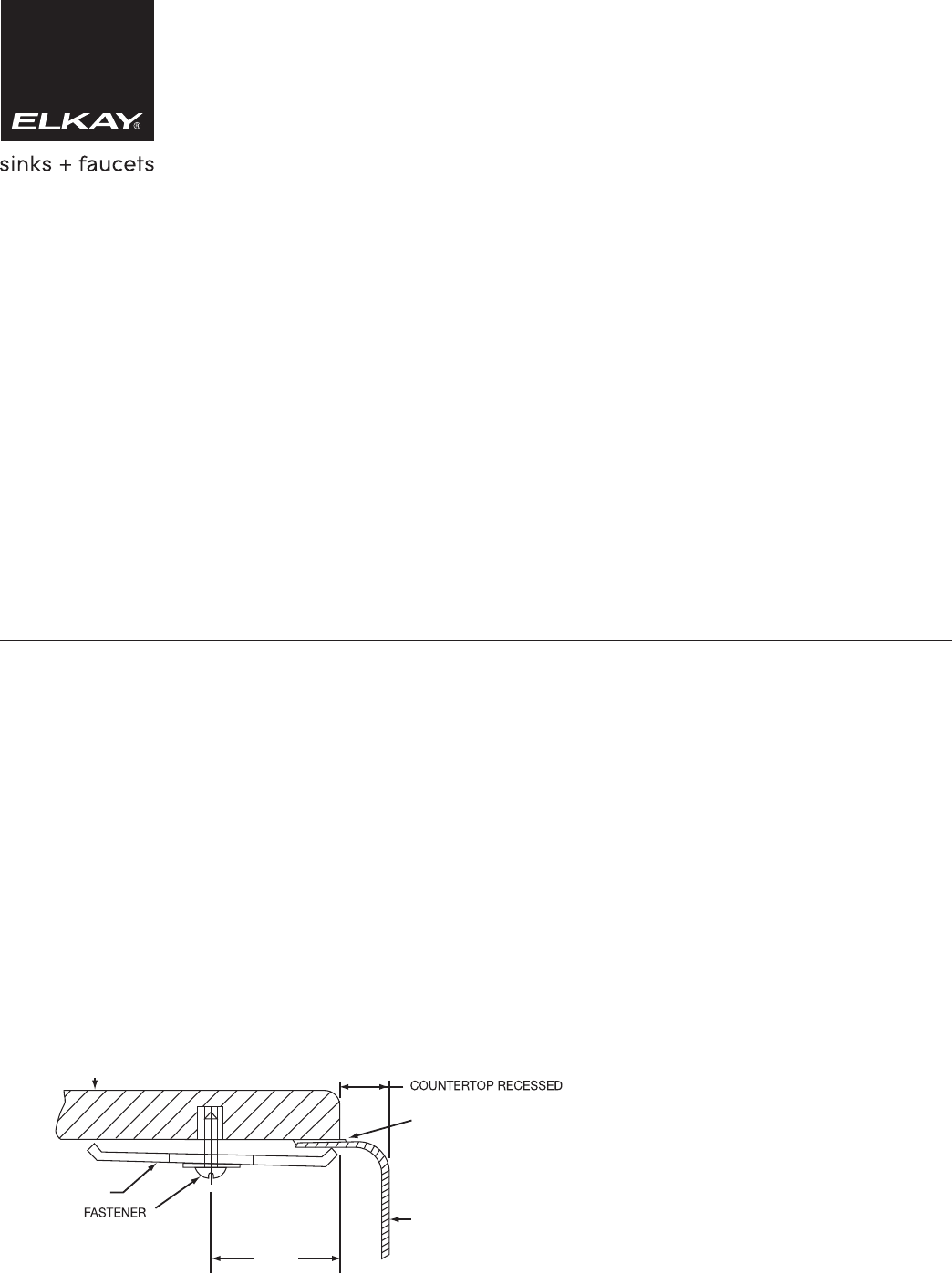

ELUH 1/2” REVEAL COUNTERTOP INSTALLATION

1/2” COUNTERTOP REVEAL

COUNTERTOP

MOUNTING

BRACKET

APPROX.1/2"

SILICONE CAULK

(NOT FURNISHED)

SINK

1-1/8"

(NOT FURNISHED)

1) ELKAY RECOMMENDS THAT UNDERMOUNT SINKS SHOULD BE INSTALLED BY A PROFESSIONAL

EXPERIENCED INSTALLER.

2) WARNING: THE ENCLOSED CUTOUT TEMPLATE WILL CREATE A COUNTERTOP OPENING THAT

WILL EXPOSE APPROXIMATELY 1/2” OF SINK RIM LEDGE. IT IS RECOMMENDED THAT YOU DIS-

CUSS THIS WITH YOUR CUSTOMER AND AGREE THAT THIS FINISHED APPEARANCE IS THE

DESIRED EFFECT. ELKAY IS NOT RESPONSIBLE FOR IMPROPER SINK OR COUNTERTOP INSTAL-

LATIONS. DUE TO THE AESTHETIC QUALITIES OF THE CONVERGING BOWL RADII, THE TEMPLATE

FURNISHED WITH EACH SINK PROVIDES THE ONLY OPENING RECOMMENDED FOR INSTALLATION

OF ELKAY UNDERMOUNT SINKS. SEE ILLUSTRATION BELOW.

3) ELKAY UNDERMOUNT SINKS SHOULD ONLY BE FASTENED TO A SOLID SURFACE COUNTERTOP

(I.E. GRANITE/CORIAN /SILESTONE ).

4) ELKAY IS NOT REPONSIBLE FOR SINK OR COUNDTERTOP IF DAMAGED DURING INSTALLATIONS.

5) METAL EDGES MAY BE SHARP - USE CAUTION WHEN HANDLING.

6) FOLLOW ALL LOCAL PLUMBING AND BUILDING CODES.

7) INSPECT SINK FOR DAMGAGE PRIOR TO BEGINING INSTALLATION.

1 2
